SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill

Name: SRSJ200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill
Brand: SANROCK
Price: 1 USD

China SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill wholesale

Brand Name : SANROCK

Model Number : 985

Certification : ISO9001,ISO,ENERGY SAVING,CE

Place of Origin : CHINA

MOQ : 1

Price : USD1

Payment Terms : D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 units per month

Delivery Time : 7-15 working days

Packaging Details : container

Type : High Pressure Crawler Drill,Drill Shank,Agricultural Hydroponics,Core Drilling Rig

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Warranty : 12 months

Usage : Water Well

Power type : Diesel

Condition : New

Product name : 300m pneumatic tractor mounted water well drilling rig machine price

Drilling depth : 300m

Contact Now

SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill

DESCRIPTION

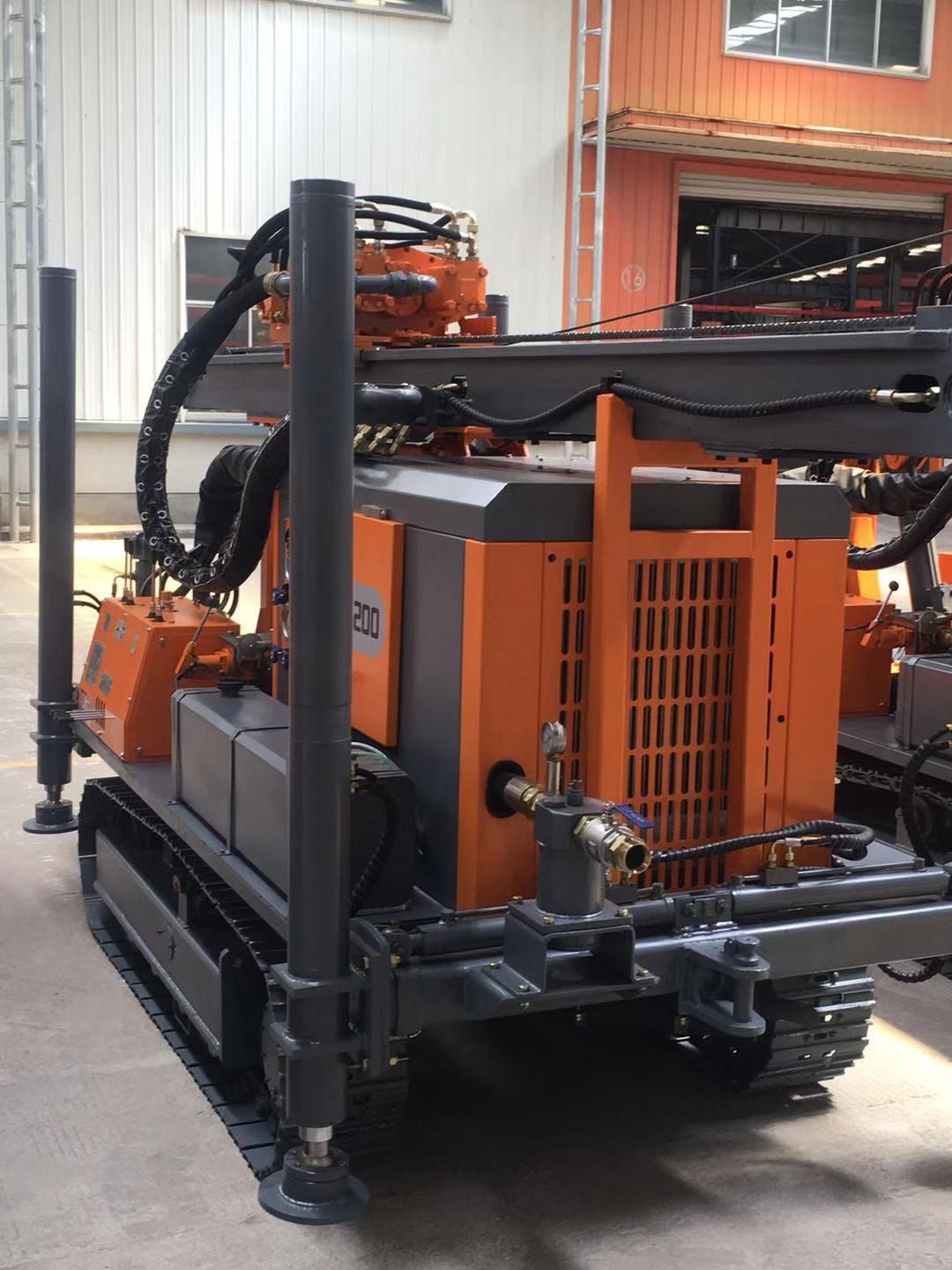

SRSJ-200 water well drilling rig with light and flexible features for wide market.

Product Features

● Small profile for easy access to narrow job sites.

● Simple but reliable design with adequate rotary torque and lifting force.

● Hoist and winch able to lift drill tools and accessories up to 1,500kgs, reducing workload of operators.

● Rotation with two speed adjustable for different hole ranges and rock conditions.

Product detail show case

SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill

SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill

Convenient and flexible positioning mechanism and plate turnover structure, simple and high efficiency.

SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill

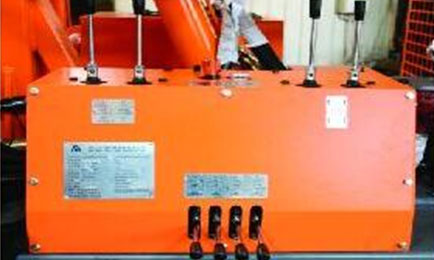

Centralized operation and control system, easy, convenient and high efficiency.

SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill

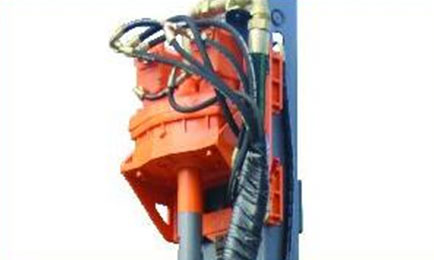

High torque rotation unit with high and low speed switchable and torque up to 5,600 N.m, widely used in large hole DTH drilling and casing.

SPECIFICATION

SRSJ-200 TECHNICAL SPECIFICATION

transportation size	540019002500mm
machine weight	5.7t
engine	yuchai YCD4R22T-80(59kw)
climbing ability	25°
ground clearance	280mm
tramming speed	2.4km/h
rod/pipe type	φ76mm3m / 89mm3m
hole depth	180m
drill pipe diameter	φ110-200mm
rotation torque	high: 2,800N.m / slow:5,600N.m
rotation speed	high:0-80 r/min / slow:0-40 r/min
feed type	oil clinder + chain
feed force	24KN
pull up force	70KN
winch pull up force	1.5t(standard configuration)
the travel of support jack oil cylinder	1400mm
angle meter	standard configuration
reverse shaft pressure device	standard configuration

==============================================

please feel free contact us, whatsapp/wechat::008615021099979

====================================================

FY600/F800 CRAWLER WATER WELL DRILLING RIG

FY600/F800 Crawler Water Well Drilling Rig

DESCRIPTION

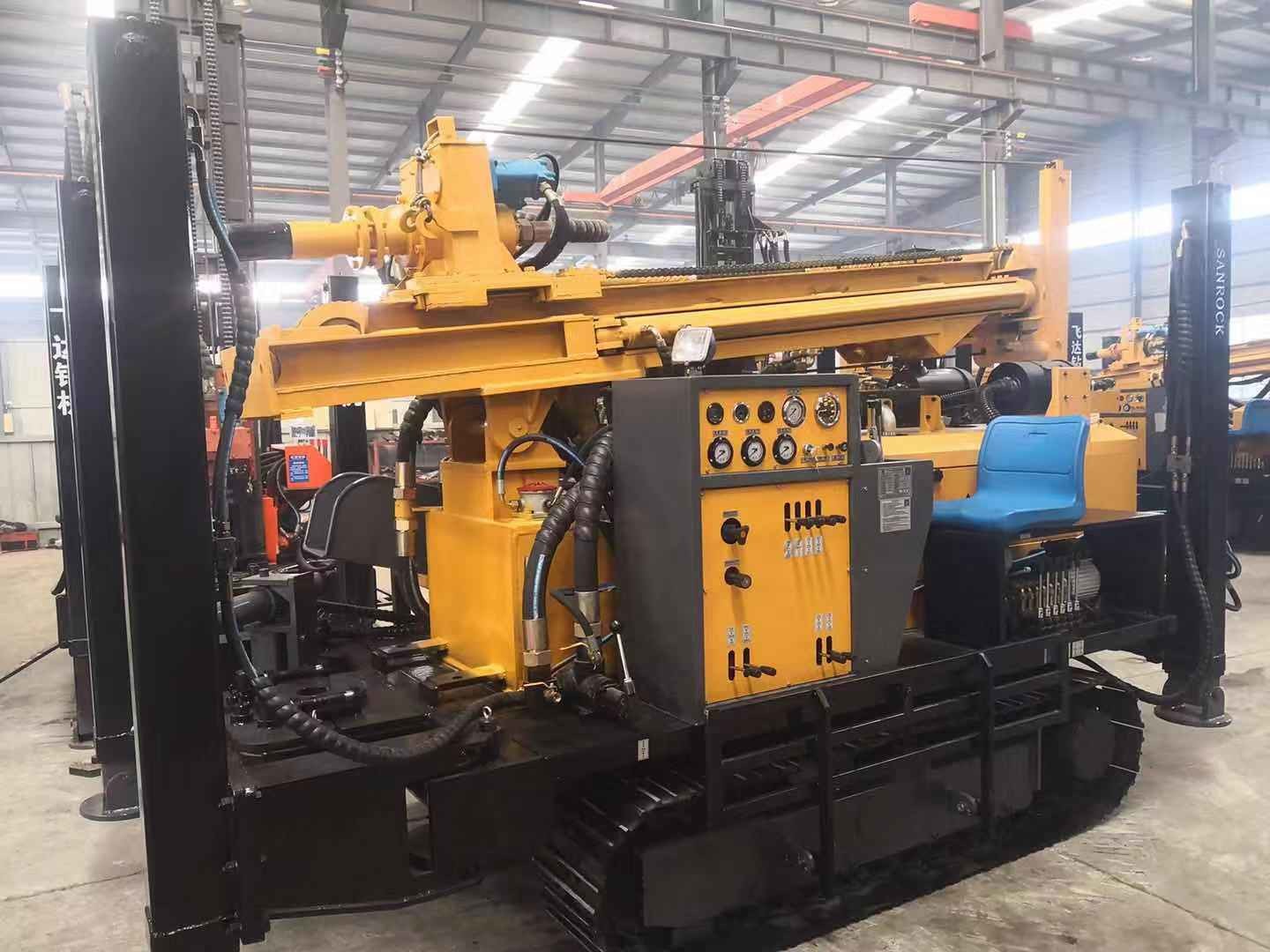

600M 800M depth Water Well Drilling Rig
SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill
Product Features

● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

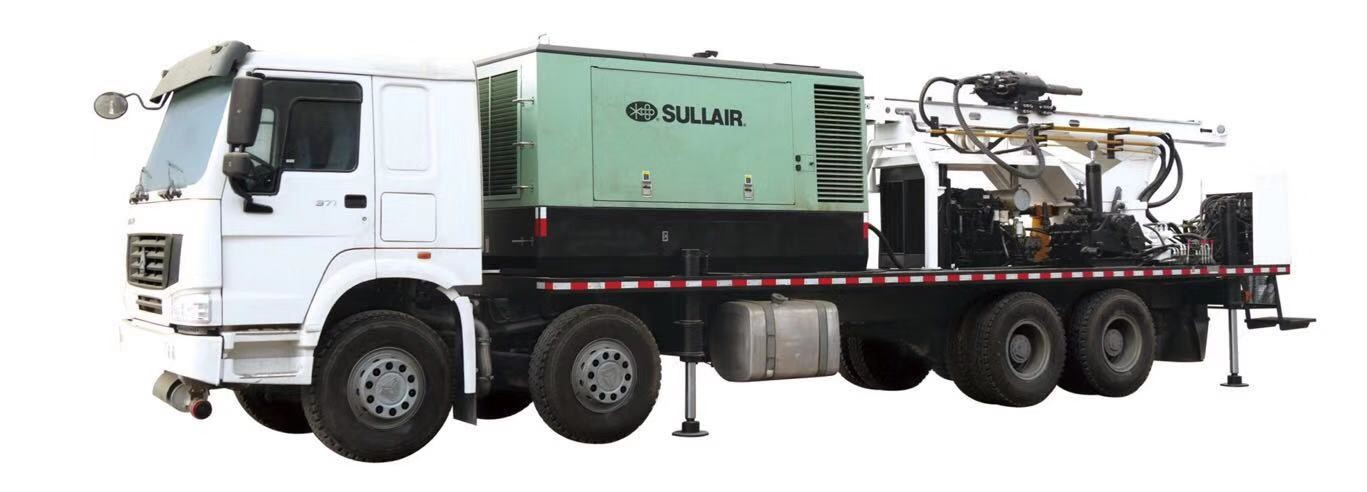

● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

SPECIFICATION

FY600 CRAWLER WATER WELL DRILLING RIG

Drilling Depth	600m
Drilling Diameter	140-350mm
One-Time Advance Length	6.60m
Walking Speed	2.50km/h
Climbing Angles	30 degree
Engine Power	118KW
Work Air Pressure	1.7-3.5 Mpa
Air Consumption	17-42m3/min
Drill Pipe Length	2m, 3m, 6m
Drill Pipe Diameter	102mm, 108mm, 114mm
Rig Lifting Force	28 ton
Rotary Speed	45-115 rpm
Rotary Torque	8500-11000 N.m
Weight	12000KG
Dimensions	600022002850mm

FY800 CRAWLER WATER WELL DRILLING RIG

Drilling Depth	700m
Drilling Diameter	140-400mm
One-Time Advance Length	6.60m
Walking Speed	2.50km/h
Climbing Angles	30 degree
Engine Power	140KW
Work Air Pressure	1.7-3.5 Mpa
Air Consumption	17-42m3/min
Drill Pipe Length	2m, 3m, 6m
Drill Pipe Diameter	102mm, 108mm, 114mm
Rig Lifting Force	30 ton
Rotary Speed	55-120 rpm
Rotary Torque	8850-13150 N.m
Weight	13000KG
Dimensions	610022002900mm

==================================================================================
please feel free contact us, whatsapp/wechat::008615021099979

=====================================================

FY600 CRAWLER WATER WELL DRILLING RIG

Drilling Depth	600m
Drilling Diameter	140-350mm
One-Time Advance Length	6.60m
Walking Speed	2.50km/h
Climbing Angles	30 degree
Engine Power	118KW
Work Air Pressure	1.7-3.5 Mpa
Air Consumption	17-42m3/min
Drill Pipe Length	2m, 3m, 6m
Drill Pipe Diameter	102mm, 108mm, 114mm
Rig Lifting Force	28 ton
Rotary Speed	45-115 rpm
Rotary Torque	8500-11000 N.m
Weight	12000KG
Dimensions	600022002850mm

FY800 CRAWLER WATER WELL DRILLING RIG

Drilling Depth	700m
Drilling Diameter	140-400mm
One-Time Advance Length	6.60m
Walking Speed	2.50km/h
Climbing Angles	30 degree
Engine Power	140KW
Work Air Pressure	1.7-3.5 Mpa
Air Consumption	17-42m3/min
Drill Pipe Length	2m, 3m, 6m
Drill Pipe Diameter	102mm, 108mm, 114mm
Rig Lifting Force	30 ton
Rotary Speed	55-120 rpm
Rotary Torque	8850-13150 N.m
Weight	13000KG
Dimensions	610022002900mm
